This document is about the introduction of SK1020D2 and SK10100D2 surface mount Schottky rectifiers. It provides information on the dimensions, nominal current, repetitive peak reverse voltage, and other characteristics of these products. The document also includes maximum ratings and characteristics, maximum average forward rectified current, repetitive peak forward current, and other parameters. Additionally, the document provides detailed information on the packaging form, weight, material, etc. of these products.

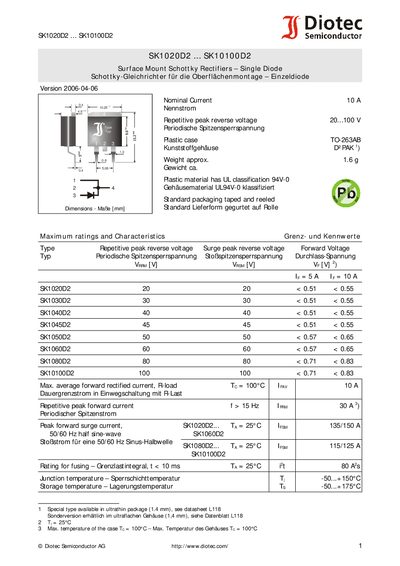

The SK1020D2‑SK10100D2 series are surface‑mount Schottky diodes offered by Diotec Semiconductor. They are supplied in a TO‑263AB (D? PAK) package and are suitable for applications requiring low forward voltage and fast recovery.
Key specifications include a nominal current of 10 A, repetitive peak reverse voltage ranging from 20 V to 100 V, UL94V‑0 classified plastic housing, RoHS compliance, and a thermal resistance junction‑to‑case of less than 15 K/W. The devices operate over a junction temperature range of –50 °C to +150 °C and are packaged either taped or on reels.
| Repetitive peak reverse voltage | 20 V – 100 V |
|---|---|
| Package type | TO‑263AB (D? PAK) |
| UL classification | UL94V‑0 |
| Maximum average forward rectified current (Fav) | 10 A |
| Junction temperature range | –50 °C to +150 °C |
| Storage temperature range | –50 °C to +175 °C |
| Thermal resistance (junction‑to‑case) | < 15 K/W |
| Typical forward voltage (10 A) | < 0.51 V |
The SK1020D2 diode is rated for a repetitive peak reverse voltage of 20 V.
They are supplied in a TO‑263AB (D? PAK) surface‑mount package.
The plastic case is classified as UL94V‑0.
