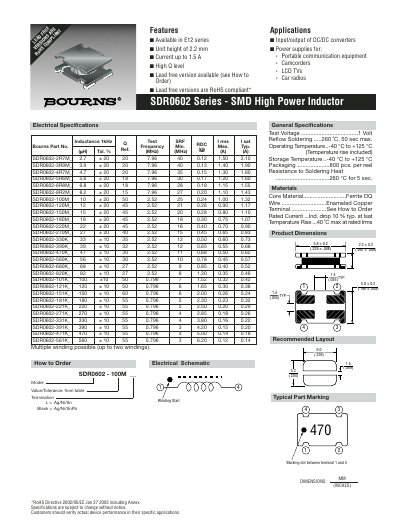

SDR0602 series SMD high power inductors have the following features: available in E12 series; unit height of 2.2 mm; current up to 1.5 A; high Q level; lead-free version available (see How to Order); lead-free versions are RoHS compliant. Applications include: input/output of DC/DC converters; power supplies for portable communication equipment, camcorders, LCD TVs, and car radios.
The SDR0602 Series SMD high‑power inductors are designed for use in DC/DC converter input/output stages and power supplies for portable communication equipment, camcorders, LCD TVs, and car radios. They are available in the E12 series with a unit height of 2.2 mm, current rating up to 1.5 A, high Q levels, and optional lead‑free, RoHS‑compliant versions.
Technical specifications include a test voltage of 1 V, operating temperature range from –40 °C to +125 °C, ferrite core material, enameled copper wire, and detailed inductance, tolerance, Q, and resistance values for each part number. Ordering information and packaging details (800 pcs per reel) are also provided.
| Unit height | 2.2 mm |
|---|---|
| Maximum current | 1.5 A |
| Test voltage | 1 Volt |
| Operating temperature range | -40 °C to +125 °C |
| Core material | Ferrite |
| Wire material | Enameled copper |
| RoHS compliance | Lead‑free versions are RoHS compliant |
The inductors can handle up to 1.5 A of current.
Yes, the lead‑free versions are RoHS compliant.
Each part has a unit height of 2.2 mm.
They are used in DC/DC converter input/output stages and power supplies for portable communication equipment, camcorders, LCD TVs, and car radios.
