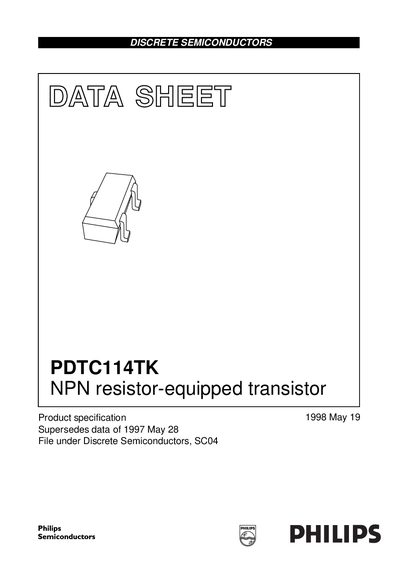

The PDTC114TK is an NPN type transistor manufactured by Philips Semiconductors. It has an internal bias resistor R1, which can simplify circuit design and reduce components and board space. It is suitable for space-saving applications in interface and driver circuits.
The PDTC114TK is an NPN resistor‑equipped transistor with a built‑in bias resistor (typ. 10 kΩ) that simplifies circuit design and reduces component count. It is suited for space‑constrained interface and driver circuits and can be used in inverter configurations without an external resistor.
The datasheet lists absolute maximum ratings, typical electrical parameters, package dimensions (SOT‑346, 3‑lead surface‑mount), and thermal characteristics. It also includes application notes, definitions of specification status, and contact information for Philips Semiconductors worldwide.
| Maximum DC output current (IC) | 100 mA |
|---|---|
| Input resistor (Ri) | 10 kΩ (typ.) |
The built‑in bias resistor R1 is typically 10 kΩ.
The device is rated for an ambient temperature range of –65 °C to +150 °C.
