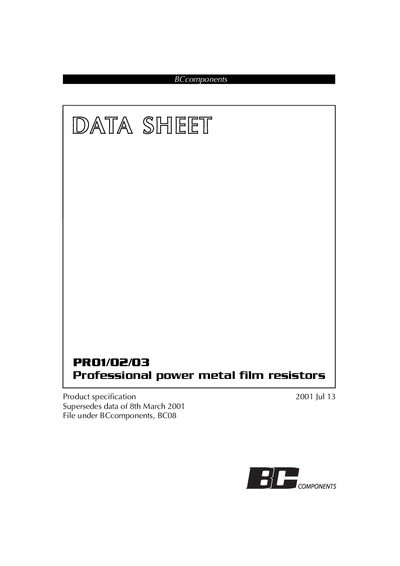

This document is the product specification of BCcomponents PR01/02/03 Professional power metal film resistors, which introduces the features and performance of this product.
The BCcomponents PRO1/02/03 series provides high‑power metal film resistors in compact packages with selectable lead materials and defined interruption behaviour. They are suitable for general‑purpose power applications and meet IEC 60115‑1, IEC 60115‑4 and IEC 60068 climatic categories.
The document lists resistance ranges, tolerances, maximum dissipation, thermal resistance, temperature coefficient, voltage ratings and detailed ordering codes. Test procedures and pulse‑loading capabilities are also described.
| Resistance range | 0.22 Ω to 1 MΩ |
|---|---|
| Resistance tolerance | +1 % (E24, E96) or +5 % (E24) |
| Maximum dissipation at 70 °C | 0.6 W (R < 1 Ω) |
| Temperature coefficient | ≤ 425 ppm/°C |
| Maximum permissible voltage (DC or RMS) | 350 V (PRO1), 500 V (PRO2), 750 V (PRO3) |
| Climatic category (IEC 60068) | 55/155/56 |
| Applicable IEC standards | IEC 60115‑1, IEC 60115‑4 |
PRO2 resistors are rated for a maximum continuous voltage of 500 V (DC or RMS).
A 1 Ω resistor can dissipate up to 0.6 W at an ambient temperature of 70 °C.
The resistors comply with IEC 60115‑1 and IEC 60115‑4.
