This document describes the BTA208 series of three quadrant triacs from Philips Semiconductors. These triacs are designed for use in circuits where high static and dynamic dV/dt and dI/dt can occur. They feature glass passivation, high commutation capability, repetitive peak voltage, and maximum rated RMS current.

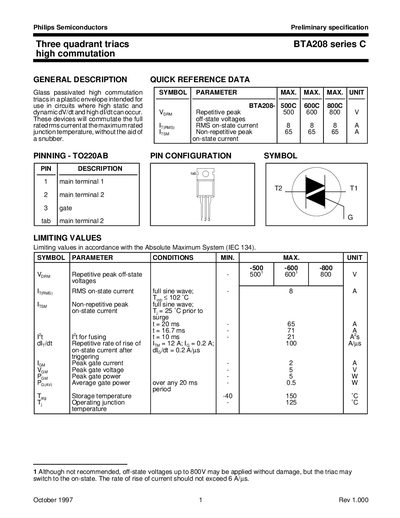

This datasheet provides the preliminary specifications for the Philips BTA208 series C three‑quadrant triacs designed for high‑commutation applications. It includes electrical limits, thermal characteristics, mechanical dimensions, and safety notes.
Key sections cover general description, limiting values, thermal resistances, static and dynamic electrical characteristics, mechanical data, and definitions of the specification status. The document also contains application information and a disclaimer regarding life‑support use.
| Maximum repetitive peak off‑state voltage | 800 V |
|---|---|
| Maximum RMS on‑state current | 8 A |
| Storage temperature range | -40 °C to 150 °C |
| Maximum operating junction temperature | 125 °C |
| Thermal resistance junction‑to‑ambient | 60 K/W |
The device can withstand up to 800 V repetitive peak off‑state voltage.
The maximum RMS on‑state current is 8 A.
The specified storage temperature range is –40 °C to 150 °C.
The maximum operating junction temperature is 125 °C.
