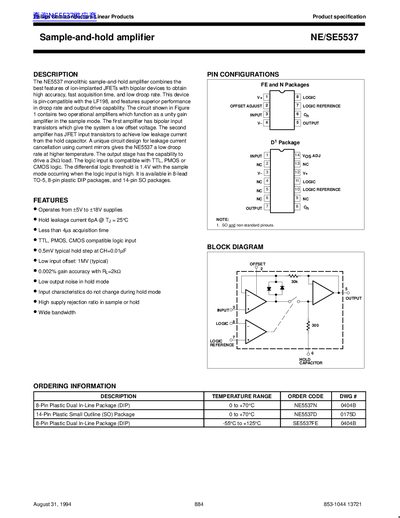

NE/SE5537 is an integrated operational amplifier manufactured by Philips Semiconductors. It uses dual power supply and operates over a voltage range of ±5V to ±18V. It features low leakage current, fast acquisition time and low droop rate.
The NE5537 (also sold as SE5537) is a monolithic sample‑and‑hold amplifier that combines ion‑implanted JFETs with bipolar devices for high accuracy, fast acquisition, and low droop. It is pin‑compatible with the LF198 and can drive a 2 kΩ load while accepting TTL, PMOS, or CMOS logic inputs.
The datasheet provides absolute maximum ratings, DC electrical characteristics, typical performance curves, and application notes such as multiplexed DAC usage, analog multiplexing, and guidelines for minimizing leakage and feed‑through errors.
| Supply voltage range | ±5 V to ±18 V |
|---|---|
| Input offset voltage | 1 mV (typical) |
| Input bias (leakage) current | 6 pA @ 25 °C |
| Gain accuracy | 0.002 % (with 2 kΩ load) |
| Typical hold step | 0.5 mV (CH=0.01 µF) |
| Acquisition time | < 4 µs |
| Output drive capability | 2 kΩ load |
| Logic input compatibility | TTL, PMOS, CMOS |
The device can be powered up to ±18 V.
Acquisition time is less than 4 µs.
The input accepts TTL, PMOS, and CMOS logic levels.
Leakage current is 6 pA at 25 °C.
