Philips PCK2509SL 50-150 MHz 1:9 SDRAM Clock Driver Datasheet

The PCK2509SL is a high-performance, low-skew, low-jitter, phase-locked loop (PLL) clock driver. It uses a PLL to precisely align, in both frequency and phase, the feedback (FBOUT) output to the clock (CLK) input signal.

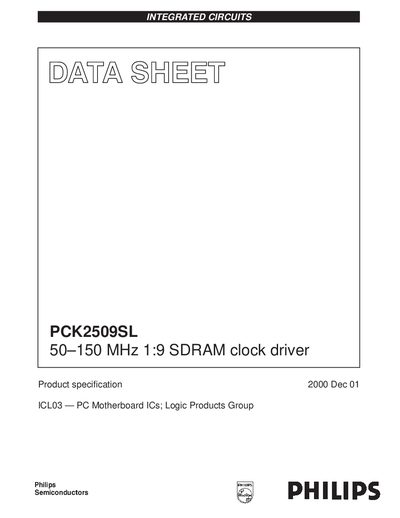

Philips PCK2509SL 50-150 MHz 1:9 SDRAM Clock Driver Datasheet - cover page
Brand
Philips
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
10
File format
PDF
File size
80 KB
Published
01 June, 2012
Updated
28 September, 2023
MD5 checksum
06DDAAD83AE35CFD3693F8DB82E7F6F5

About this manual

The Philips PCK2509SL is a 50‑150 MHz 1:9 SDRAM clock driver that uses an integrated PLL to distribute a low‑skew, low‑jitter clock to nine outputs. It operates from a 3.3 V supply and supports both 2.5 V and 3.3 V input levels.

The document provides detailed specifications, pin descriptions, functional block diagram, absolute maximum ratings, recommended operating conditions, and characteristic curves for design engineers.

What's inside

  • Features
  • Pin Configuration
  • Pin Descriptions
  • Functional Block Diagram
  • Absolute Maximum Ratings
  • Recommended Operating Conditions
  • Electrical Characteristics
  • Timing Requirements
  • Switching Characteristics
  • Characteristic Curves

Specifications

Supply voltage (Vcc)3.3 V
Pin‑to‑pin skew< 200 ps
Peak‑to‑peak jitter+80 ps
Cycle‑to‑cycle jitter65 ps
Stabilization time1 ms
Operating temperature range0 °C – +70 °C
Package type24‑Pin Plastic TSSOP (SOT355‑1)

Frequently asked questions

What supply voltage does the PCK2509SL require?

It requires a 3.3 V supply (Vcc).

How many clock outputs does the PCK2509SL provide?

It provides nine low‑skew clock copies: five in bank 1 and four in bank 2.

What is the maximum pin‑to‑pin skew?

The pin‑to‑pin skew is less than 200 ps.
