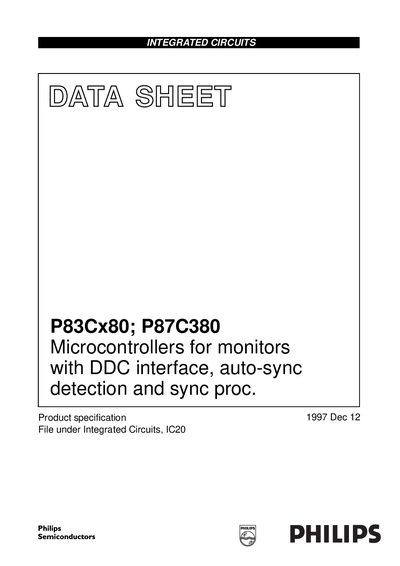

This document describes the features and characteristics of the P83Cx80 and P87C380 microcontrollers, which are designed for monitors with DDC interface, auto-sync detection, and sync processing.
The Philips P83Cx80 and P87C380 are 8‑bit microcontrollers designed for monitor applications. They integrate an 80C51‑compatible core, on‑chip oscillator, DDC1/2B/2AB/2B+ interfaces, and hardware mode detection for HSYNC/VSYNC signals.
The devices provide extensive analog and digital I/O, including ten 8‑bit PWM outputs, one 14‑bit PWM output, a 4‑bit ADC with two channels, and four 8‑bit DAC channels. Power management features include watchdog timer, idle and power‑down modes, and operation over a 4.4‑5.5 V supply range.
| Maximum oscillator frequency | 16 MHz |
|---|---|
| Supply voltage range | 4.4 V to 5.5 V |
| Operating temperature | -25 °C to +85 °C |
| 8‑bit PWM outputs | 10 |
| 14‑bit PWM output | 1 |
| ADC resolution | 4‑bit, 2 input channels |
| DAC channels | 4 (8‑bit resolution) |
| ROM size (P83C880) | 8 KB |
| Package type | SDIP42 |
The on‑chip oscillator can run up to 16 MHz.
It operates from a single supply of 4.4 V to 5.5 V.
The device provides ten 8‑bit PWM outputs and one 14‑bit PWM output.
It includes a 4‑bit ADC with two input channels for keyboard interface.
