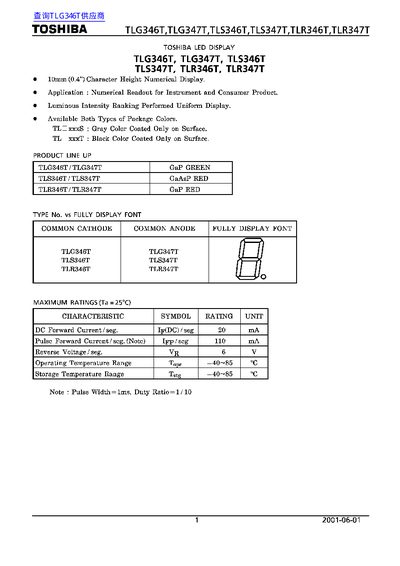

This handbook describes the Toshiba TLG, TLS and TLR LED display semiconductor families. It lists product line‑ups, maximum ratings, electrical‑optical characteristics, pin connections and handling precautions.
The document also includes usage restrictions, safety notes, and environmental handling guidance for the GaAs‑based devices, making it a comprehensive reference for designers and engineers.
| DC Forward Current per segment (Ip) | 20 mA |
|---|---|
| Pulse Forward Current per segment (Ipp) | 110 mA |
| Reverse Voltage per segment (VR) | 6 V |
| Operating Temperature Range | -40 °C to 85 °C |
| Storage Temperature Range | -40 °C to 85 °C |
Soldering temperature should be less than 260 °C for 3 seconds at 2.0 mm from the seating plane.
Gray (TLU xxxS) and Black (TLU xxxT) surface‑coated options are available.
