OMRON G8P power relay specifications, performance, operating environment temperature, operating environment humidity and other information.

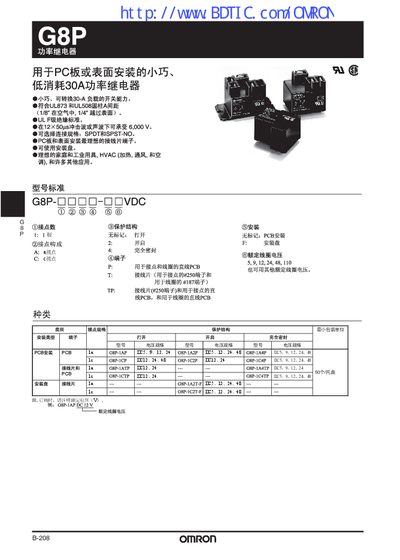

This handbook describes the Omron G8P series power relays, which are compact, low‑consumption devices suitable for PCB or surface‑mount applications. They are intended for a wide range of uses including HVAC, industrial equipment, and other general‑purpose switching tasks.
The document lists electrical ratings, contact configurations, mechanical and environmental performance data, as well as mounting dimensions and installation notes for the various G8P variants (e.g., G8P‑1A2TP, G8P‑1C4P). Certification information and handling precautions are also included. This manual is written in Chinese.
| Contact Configuration | SPDT, SPST‑NO |
|---|---|
| Rated Current | 30 A |
| Insulation Resistance | ≥100 MΩ (DC 500 V) |
| Mechanical Life | ≥100 000 cycles |
| Certifications | UL 873, UL 508, CSA |
The G8P relay can be ordered with SPDT or SPST‑NO contacts.
The relay is rated for a continuous current of up to 30 A.
It offers an insulation resistance of at least 100 MΩ with a dielectric strength of 500 V DC.
The relay complies with UL 873, UL 508, and CSA standards.
