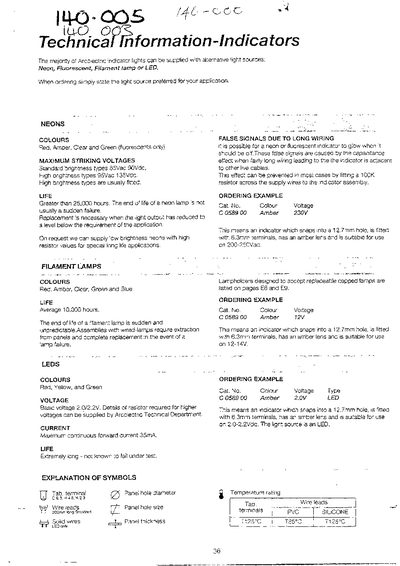

This leaflet provides technical information for Arcolectric indicator lights that can be supplied with neon, fluorescent, filament lamp or LED sources. It includes ordering guidance, colour and voltage options, and notes on false‑signal prevention.
Additional sections cover specifications such as striking voltages, maximum forward current, temperature ratings, dimensions, and how to construct catalogue numbers for the various lamp types.
| Standard brightness striking voltage | 65 Vac / 90 Vdc |
|---|---|
| High brightness striking voltage | 95 Vac / 135 Vdc |
| Maximum continuous forward current (LED) | 30 mA |
| LED basic voltage | 2.0‑2.2 V |
| Neon colour options | Red, Amber, Green, Clear |
| LED colour options | Red, Yellow, Green |
Neon, fluorescent, filament lamp and LED sources can be supplied.
Greater than 25,000 hours.
