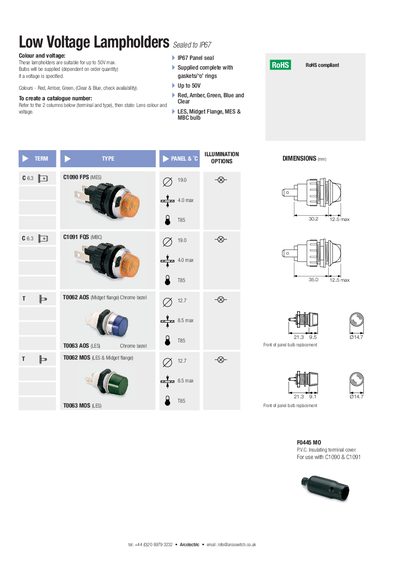

This document is the product manual of Arcolectric's T0062, T0063, C1090, C1091 low voltage lamp holders. The lamp holders are IP67 sealed and come with gaskets. They are suitable for LES, Midget Flange, MES and MBC bulbs. They are RoHS compliant.
The low voltage lampholders are designed for up to 50 V maximum and are supplied with IP67 panel sealing. They are offered in several lens colours – red, amber, green, blue and clear – and support LES, Midget Flange, MES and MBC bulb types.
Dimensions are listed as 14.7 mm × 21.3 mm × 94 mm, and the products are RoHS compliant. For further information contact Arcolectric via phone +44 (0)20 8979 3232 or email [email protected].
| IP rating | IP67 |
|---|---|
| Maximum voltage | 50 V |
| Available colours | Red, Amber, Green, Blue, Clear |
| Dimensions (mm) | 14.7 × 21.3 × 94 |
| RoHS compliance | Yes |
| Supported bulb types | LES, Midget Flange, MES, MBC |
The lampholders are rated for up to 50 V.
Yes, they are supplied with an IP67 panel seal.
Red, amber, green, blue, and clear lenses are available.
Yes, they meet RoHS compliance.
