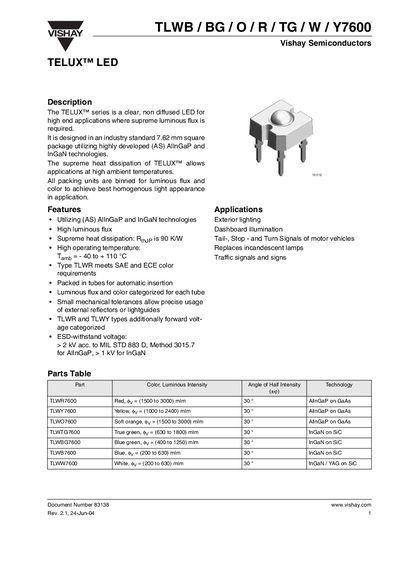

The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP and InGaN technologies. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux and color to achieve best homogenous light appearance in application.
The TELUX™ series is a clear, non‑diffused LED designed for high‑end applications that require supreme luminous flux and heat dissipation. It is offered in a standard 7.62 mm square package using AllnGaP and InGaN technologies, and is binned for consistent luminous flux and color.
The handbook lists absolute maximum ratings, optical and electrical characteristics, typical performance curves, and application examples such as exterior lighting, dashboard illumination, and vehicle signal lights. It also includes a parts table, package dimensions, and a policy statement on ozone‑depleting substances.
| Operating temperature range | -40 °C to +110 °C |
|---|---|
| Reverse voltage | 10 V |
| Thermal resistance (junction/pin) | 90 K/W |
The LEDs operate from –40 °C up to +110 °C.
The reverse voltage rating is 10 V.
