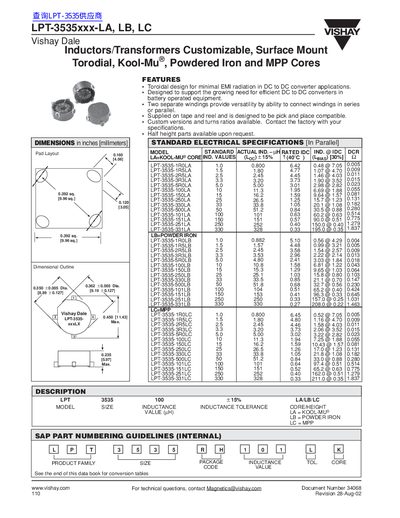

This datasheet provides information on LPT-3535xxx-LA, LB, LC including dimensions, rated IDC, actual inductance, inductance tolerance, etc.
The LPT-3535 series offers surface‑mount inductors with three core options: LA (KOOL‑MU®), LB (Powder Iron) and LC (MPP). They are designed for minimal EMI in DC‑to‑DC converter applications and support series or parallel winding configurations.
The datasheet lists physical dimensions, inductance values, tolerance (+15%), and DCR for each size, and describes packaging on tape and reel that is pick‑and‑place compatible. Connection diagrams and part‑marking details are also provided.
| Core type LA | KOOL‑MU® |
|---|---|
| Core type LB | Powder Iron |
| Inductance tolerance | ±15% |
| Package | Surface‑mount, tape and reel, pick‑and‑place compatible |
The series offers three core types: LA uses KOOL‑MU®, LB uses Powder Iron, and LC uses MPP.
All variants have an inductance tolerance of ±15%.
They are supplied on tape and reel and are designed to be pick‑and‑place compatible.
