Si9200EY is a CAN bus driver and receiver designed for multiplexed bus in automotive and industrial applications. It features the ability to survive ground shorts and transients, and is compatible with Intel 82526 CAN controller. The product requires no external components for direct interface and is suitable for automotive temperature range (-40 to 125 degrees Celsius).
The Si9200EY provides a direct interface between an Intel 82526 CAN controller and the CAN bus, offering drive capability, differential receive, and protection against bus transients. It operates over an automotive temperature range of –40 °C to 125 °C and is supplied in a lead‑free SO‑8 surface‑mount package.

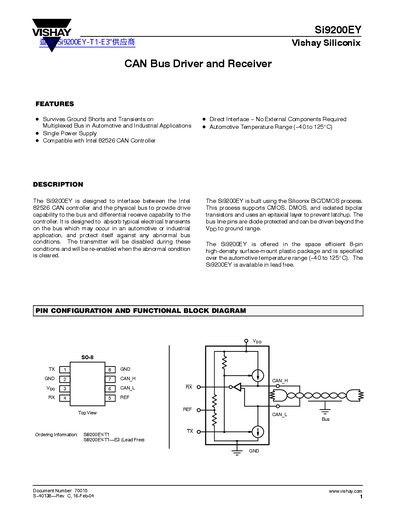

Key features include a single power supply, built‑in transient protection, and compliance with the Siliconix BiC/DMOS process. The datasheet details pin configuration, electrical specifications, and recommended operating conditions for designers.
| Operating Temperature Range | -40 °C to 125 °C |
|---|---|
| TX Input Voltage High (VIH) | 4 V |
| TX Input Voltage Low (VIL) | 1 V |
It is rated for an automotive temperature range of –40 °C to 125 °C.
It is offered in an 8‑pin high‑density surface‑mount SO‑8 package.
