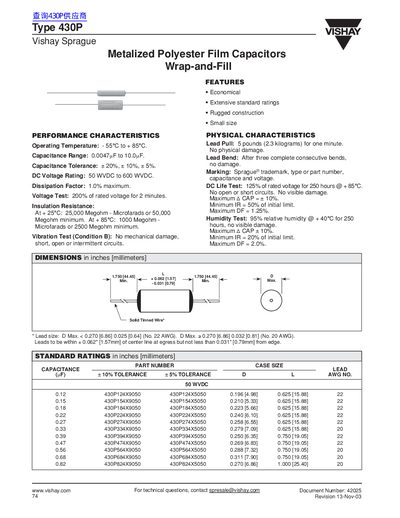

Performance characteristics of Vishay Sprague 430P capacitors, including operating temperature, capacitance range, capacitance tolerance, DC voltage rating, dissipation factor, voltage test, insulation resistance, vibration test, mechanical characteristics, marking, DC life test, humidity test, dimensions, etc
The 430P series from Vishay Sprague are metalized polyester film capacitors offered in a compact wrap‑and‑fill construction. They are marketed as economical, rugged, and available in a wide range of standard ratings.
The document lists detailed performance and physical characteristics, including operating temperature, voltage ratings, capacitance range, dissipation factor, insulation resistance, lead specifications, and ordering information for stocked part numbers.
| Operating Temperature | -55°C to +85°C |
|---|---|
| Capacitance Range | 0.0047 µF to 10.0 µF |
| DC Voltage Rating | 50 WVDC to 600 WVDC |
| Maximum Dissipation Factor | 1.25 % |
| Insulation Resistance (minimum) | 50 % of initial limit |
| Lead Pull | 5 lb (2.3 kg) for 1 min |
The capacitors operate from –55 °C up to +85 °C.
The series is rated from 50 WVDC up to 600 WVDC.
Capacitance values range from 0.0047 µF to 10.0 µF.
The maximum dissipation factor is 1.25 %.
