This document describes the features and characteristics of LPE-5047-102NA A CORE ± 30% INDUCTANCE TOLERANCE 1000µH INDUCTANCE VALUE 5047 SIZE LPE MODEL SAP, including electrical specifications, inductance range, rated current range, and the advantages of surface mount transformers/inductors.

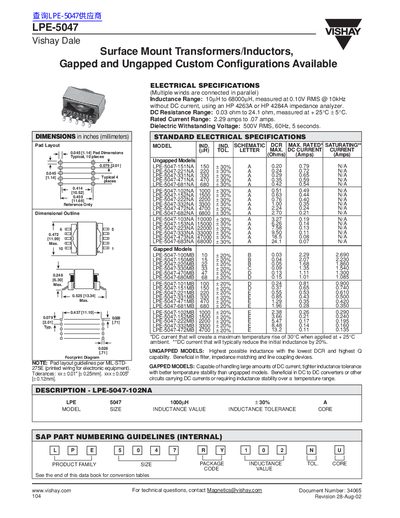

The LPE-5047 series from Vishay Dale consists of surface‑mount transformers and inductors available in gapped and ungapped custom configurations. The handbook lists inductance values from 10 µH up to 68 000 µH and includes detailed pad layouts, schematics, and environmental performance data.
Key electrical parameters such as inductance range, DC resistance, rated current, and dielectric withstanding voltage are presented together with mechanical specifications, tape‑and‑reel packaging dimensions, and compliance test results for temperature, humidity, shock, and vibration.
| Inductance Range | 10 µH to 68 000 µH |
|---|---|
| DC Resistance Range | 0.03 Ω to 24.1 Ω |
| Rated Current Range | 0.07 A to 2.29 A |
| Dielectric Withstanding Voltage | 500 V RMS, 60 Hz, 5 s |
| Operating Temperature | -55 °C to +125 °C |
| High Humidity Rating | 85 % RH |
| Soldering Heat Test | up to +230 °C |
| Tape Width | 24 mm |
| Reel Diameter | 13 in (330.2 mm) |
The LPE-5047 series covers inductance values from 10 µH up to 68 000 µH.
They are rated for temperatures from –55 °C to +125 °C.
Each part can withstand 500 V RMS at 60 Hz for 5 seconds.
