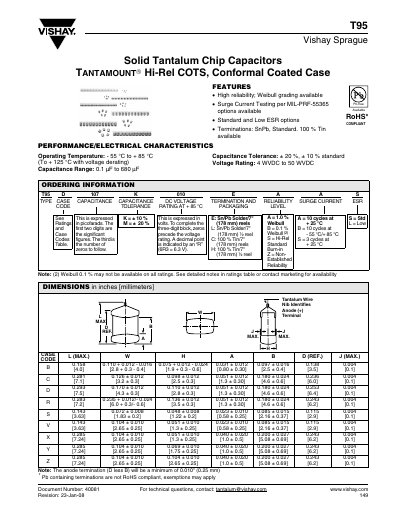

This document describes the features and characteristics of TANTAMOUNT® Hi-Rel COTS solid tantalum chip capacitors, including high reliability, Weibull grading, surge current testing, standard and low ESR options, etc.
The T95 series is part of Vishay's TANTAMOUNT® Hi‑Rel COTS solid tantalum chip capacitors, offered in a conformal‑coated case. The document presents the electrical performance, reliability options, and physical dimensions for a range of capacitance values.
Key features include high reliability with Weibull grading, surge‑current testing per MIL‑PRF‑55365, standard and low‑ESR options, and multiple termination styles (SnPb, standard, 100 % tin). Detailed tables list case codes, part numbers, voltage ratings, leakage, dissipation factor, and ESR values.
| Operating Temperature | -55 °C to +85 °C (to +125 °C with voltage derating) |
|---|---|
| Capacitance Range | 0.1 µF to 680 µF |
| Capacitance Tolerance | ± 20 % (standard), ± 10 % (standard) |
| Voltage Rating | 4 WVDC to 50 WVDC |
| Termination Options | SnPb, Standard, 100 % Tin |
The T95 capacitors operate from –55 °C to +85 °C, and up to +125 °C with voltage derating.
The series is available with voltage ratings from 4 WVDC up to 50 WVDC.
Available terminations are SnPb, standard, and 100 % tin.
Technical questions can be sent to [email protected] or addressed via www.vishay.com.
