HFA06TB120S is a state of the art ultra fast recovery diode from International Rectifier. Employing the latest in epitaxial construction and advanced processing techniques it features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available.
The HFA06TB120S is an ultrafast, soft‑recovery diode from International Rectifier’s HEXFRED line. It offers low reverse recovery charge, low peak recovery current, and high efficiency for power‑conversion applications such as inverters and motor drives.

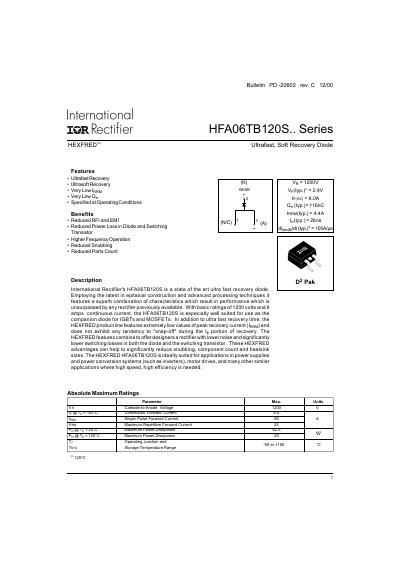

The bulletin provides detailed electrical characteristics, thermal‑mechanical data, package dimensions, and ordering information, making it a comprehensive reference for designers and engineers.
| Maximum Reverse Voltage (VR) | 1200 V |
|---|---|
| Typical Forward Voltage (VF) | 2.4 V |
| Continuous Forward Current (IF) | 6.0 A |
| Reverse Recovery Charge (Qrr) | 116 nC |
| Peak Reverse Recovery Current (IRRM) | 4.4 A |
| Reverse Recovery Time (trr) | 26 ns |
The diode is rated for a maximum reverse voltage of 1200 V.
The typical forward voltage drop is 2.4 V.
The reverse recovery charge is specified as 116 nC (typical).
Junction‑to‑case thermal resistance is 2.0 °C/W and junction‑to‑ambient is 80 K/W.
