VISHAY TLWB/BG/O/R/TG/W/Y7900 is a LED product launched by VISHAY company, which adopts advanced (AS) AllnGaP and InGaN technology, has high luminous flux and high heat dissipation characteristics, and is suitable for high-end applications.
The TELUX™ series is a clear, non‑diffused LED designed for high‑end applications that require supreme luminous flux and heat dissipation. It is offered in a standard 7.62 mm square package using AllnGaP and InGaN technologies and is suitable for exterior lighting, dashboard illumination, vehicle signal lamps, and traffic signs.

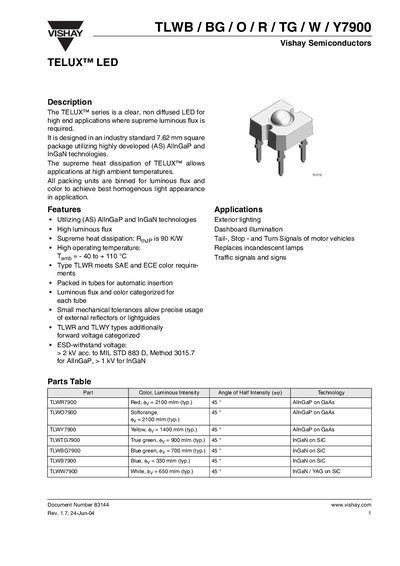

The handbook includes absolute maximum ratings, optical and electrical characteristics, typical performance curves, package dimensions, and a parts table for each color variant. It also contains Vishay’s Ozone Depleting Substances policy statement.
| Typical Luminous Flux (TLWR7900) | 2100 mcd |
|---|---|
| Typical Forward Voltage (TLWR7900) | 1.83 V |
| Operating Temperature Range | -40 °C to +110 °C |
| Reverse Voltage (AllnGaP) | 10 V |
| Power Dissipation (typ.) | 187 mW |
The LEDs operate from –40 °C up to +110 °C.
The typical forward voltage is 1.83 V.
The typical luminous flux is 2100 mcd.
