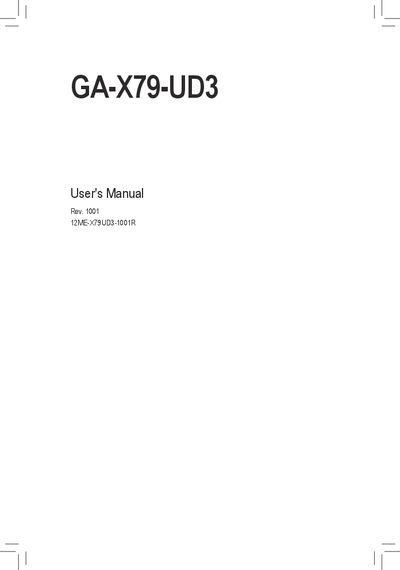

This manual provides detailed information on the features and specifications of GA-X79-UD3 motherboard
This manual covers all aspects of the GA‑X79‑UD3 motherboard, including hardware installation, BIOS configuration, driver installation, and unique features such as Xpress Recovery, EasyTune, and Cloud OC. Detailed step‑by‑step procedures help users safely install the CPU, memory, expansion cards, and connect all internal and external connectors.
Additional sections describe BIOS options, power management, audio and LAN configuration, and include an extensive appendix with SATA, audio, and troubleshooting guides, as well as worldwide support contact information.
| CPU Support | Intel® Core™ i7 processors in the LGA2011 package |
|---|---|
| Chipset | Intel® X79 Express Chipset |
| Memory Slots | 4 DDR3 DIMM sockets supporting up to 32 GB |
| Audio Codec | Realtek ALC898 codec (HD Audio, 2/4/5.1/7.1‑channel) |
| LAN | 1 × Intel GbE LAN phy (10/100/1000 Mbit) |
It supports up to 32 GB of system memory across four DDR3 DIMM sockets.
Install the graphics card in the PCIEX16 slot.
Do not remove or break the motherboard S/N or warranty stickers, as they are required for warranty validation.
