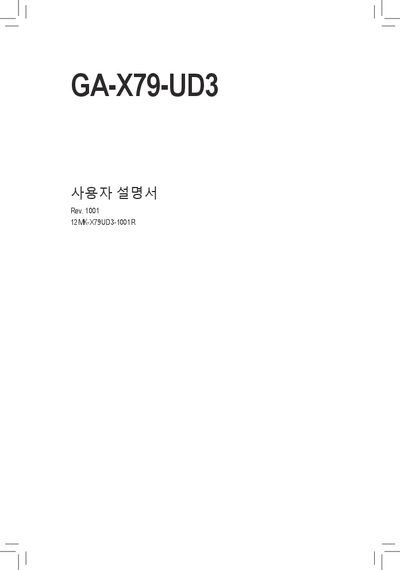

Gigabyte GA-X79-UD3 Motherboard User Manual

GA-X79-UD3 User Manual, introduce the hardware installation and BIOS setup information of the motherboard.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Korean
Pages: 112
File format: PDF
File size: 38.3 MB
Published: 11 May, 2012
Updated: 30 September, 2023
Model: GA-X79-UD3
MD5 checksum: 9F5C755A37B0803E2DB43330F78FF4BA
PDF: Gigabyte GA-X79-UD3 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the GA‑X79‑UD3 motherboard, including hardware mounting, BIOS configuration, driver installation, and troubleshooting. It also lists the optional accessories and provides contact information for global support.

The document details the board’s specifications such as supported CPUs, memory types, audio codec, LAN, expansion slots, and storage interfaces, and explains how to use Gigabyte’s unique features like Xpress Recovery, EasyTune, and CrossFireX. This manual is written in Korean.

What's inside

Hardware Installation
BIOS Setup
Driver Installation
Unique Features
Appendix
Specifications

Specifications

CPU Support	Intel Core i7 processors (LGA2011)
Chipset	Intel X79 Express
Audio Codec	Realtek ALC898
LAN	1 × Intel GbE LAN (10/100/1000 Mbit)
Front USB 3.0 Ports	2 × USB 3.0/2.0 ports on front panel

Frequently asked questions

How many SATA 6 Gb/s ports does the GA‑X79‑UD3 support?

The board supports up to two SATA 6 Gb/s devices.

What audio codec is integrated on the motherboard?

It uses the Realtek ALC898 audio codec.

How many USB 3.0 ports are on the front panel?

There are two USB 3.0/2.0 ports on the front panel.
