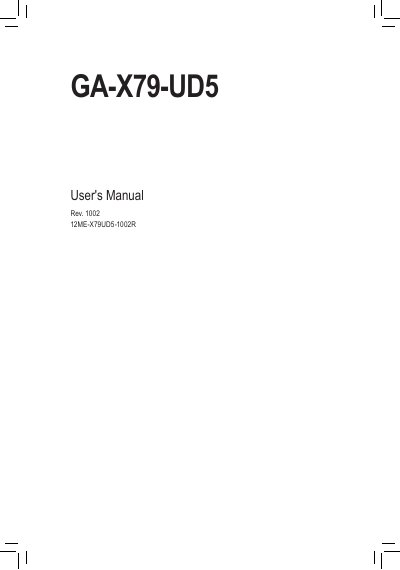

This user manual introduces the detailed information of GIGABYTE GA-X79-UD5 motherboard, including the components of the motherboard, hardware installation, BIOS settings, etc.
This manual covers everything needed to install and configure the GA-X79-UD5 motherboard, including hardware installation, CPU and memory setup, expansion card placement, and back‑panel connector details. It also explains BIOS setup options, voltage protection settings, and unique Gigabyte features such as Xpress Recovery and Cloud OC.
Additional sections guide you through driver installation, audio and LAN configuration, storage interface setup, and troubleshooting. Appendices contain contact information for global Gigabyte support and regulatory statements.
| CPU Support | Intel Core i7 processors (LGA2011 package) |
|---|---|
| Chipset | Intel X79 Express Chipset |
| Memory Slots | 8 DDR3 DIMM sockets, up to 64 GB, 4‑channel architecture |
| Supported Memory Speed | DDR3 2133/1866/1600/1333/1066 MHz |
| Audio Codec | Realtek ALC898 codec, HD Audio, 2/4/5.1/7.1‑channel |
| LAN | 1 × Intel GbE LAN phy (10/100/1000 Mbit) |
It provides eight DDR3 DIMM sockets that can hold up to 64 GB of system memory.
Install the card in the PCIEX16_1 slot for optimum performance.
