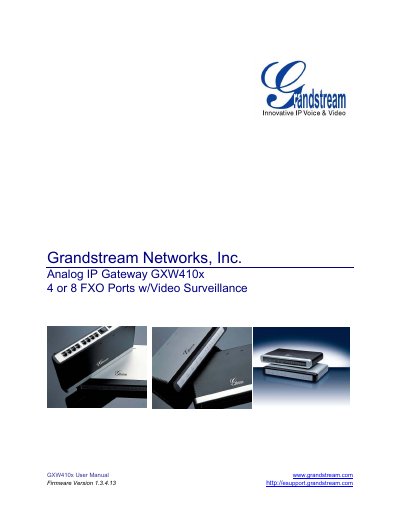

This manual introduces Grandstream GXW410x Analog IP Gateway. The gateway has 4 or 8 FXO ports and support video surveillance.
The GXW410x is an analog IP gateway that converts SIP/RTP IP calls to PSTN and vice‑versa. It is offered in two versions – GXW4104 with four FXO ports and GXW4108 with eight FXO ports – and includes an optional video‑surveillance port for analog cameras.
The manual covers safety compliance, packaging contents, hardware connections, web‑based configuration, advanced settings, video‑surveillance setup, firmware upgrades, and factory‑reset procedures, with example configurations for various deployment scenarios.
| LAN interface | 2xRJ45 10/100Mbps |
|---|---|
| LED indicators | 8 green LEDs |
| Power input | 100‑240V AC, 50/60Hz, 0.5A |
| Power output | 12V DC, 1.25A |
| Dimensions | 225 mm × 172 mm × 42 mm |
| Weight | 0.29 lb (3.5 oz) |
| Operating temperature | 32‑104 °F (0‑40 °C) |
| Humidity range | 10 %‑90 % non‑condensing |
| Regulatory compliance | FCC, CE |
The GXW410x includes a VIDEO IN RCA connector for analog video‑surveillance cameras, available in hardware revision 1 only.
The GXW410x is sold as GXW4104 with four FXO ports or GXW4108 with eight FXO ports.
