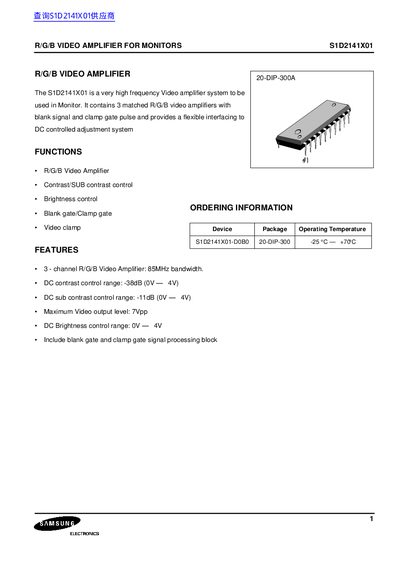

The S1D2141X01 is a high frequency video amplifier with contrast/sub contrast control, brightness control, blank gate/clamp gate pulse and a flexible interface to DC controlled adjustment system.
The S1D2141X01 is a high‑frequency R/G/B video amplifier intended for monitor applications. It integrates three matched video channels with blank and clamp gate signals and provides DC‑controlled contrast, sub‑contrast, and brightness adjustments.
Key specifications include an 85 MHz bandwidth per channel, DC contrast control range of –38 dB (0‑4 V), sub‑contrast range of –11 dB (0‑4 V), maximum video output of 7 Vpp, and operation from a 12 V supply within –25 °C to +70 °C. Detailed pin assignments, absolute maximum ratings, and AC/DC electrical characteristics are provided for design integration.
| Channel bandwidth | 85 MHz |
|---|---|
| DC contrast control range | -38 dB (0 V — 4 V) |
| DC sub‑contrast control range | -11 dB (0 V — 4 V) |
| Maximum video output level | 7 Vpp |
| Supply voltage | 12 V (max 13.5 V) |
| Operating temperature range | -25 °C to +70 °C |
| Maximum power dissipation | 1.7 W |
Each R/G/B channel has a bandwidth of 85 MHz.
DC contrast can be adjusted from –38 dB (0 V — 4 V) and sub‑contrast from –11 dB (0 V — 4 V).
The device operates from a 12 V supply, with a maximum rating of 13.5 V.
The amplifier is rated for –25 °C to +70 °C operating temperature.
