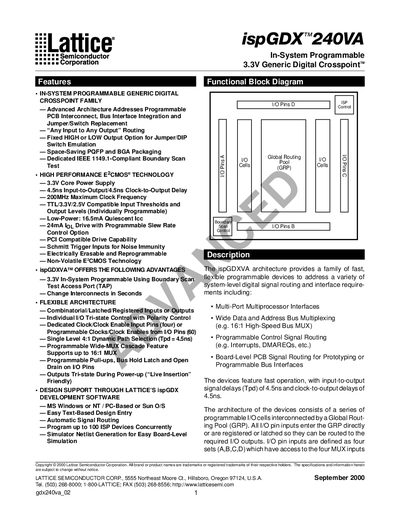

ispGDX TM240VA is a 3.3V Generic Digital Crosspoint that is programmable in system. It features an advanced architecture that addresses programmable PCB interconnect, bus interface integration and jumper/switch replacement.
The ispGDX240VA is a 3.3 V core, in‑system programmable generic digital crosspoint offering any‑to‑any routing, fixed high/low output options, and IEEE 1149.1‑compliant boundary‑scan test. It features high‑performance E2CMOS technology with 4.5 ns input‑to‑output and clock‑to‑output delays and up to 200 MHz maximum clock frequency.
The device provides flexible architecture with programmable I/O cells, 4:1 dynamic MUX (expandable to 16:1), programmable slew‑rate, open‑drain, pull‑up, and bus‑hold features. It supports PCI‑compatible drive capability, live‑insertion operation, and includes a user‑electronic signature and security features.
| Core Power Supply | 3.3 V |
|---|---|
| Input‑to‑Output Delay | 4.5 ns |
| Clock‑to‑Output Delay | 4.5 ns |
| Maximum Clock Frequency | 200 MHz |
| Output Drive Capability | 24 mA sink / 12 mA source |
| Erase/Reprogram Cycles | 10,000 cycles |
| Maximum Junction Temperature | 150 °C |
The device uses a 3.3 V core power supply.
It can operate up to 200 MHz clock frequency.
The ispGDX240VA provides 240 I/O pins.
The device is rated for at least 10,000 erase/reprogram cycles.
