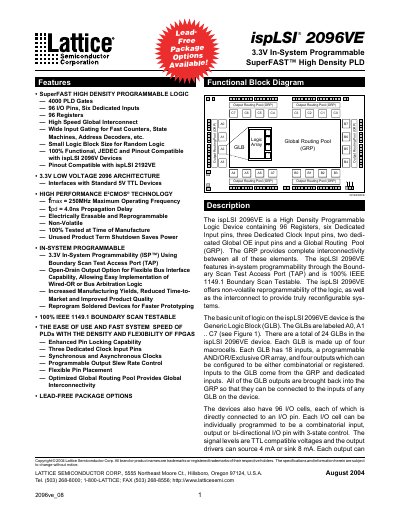

The document describes the features and characteristics of ispLSI ® 2096VE 3.3V In-System Programmable SuperFAST™ High Density PLD, including 4000 PLD gates, 96 I/O pins, 96 registers, high speed global interconnect, etc.
The ispLSI 2096VE is a 3.3 V in‑system programmable high‑density PLD featuring 96 I/O pins, 4000 PLD gates, and three dedicated clock inputs. It offers 250 MHz maximum operating frequency, non‑volatile reprogrammability, and full IEEE 1149.1 boundary‑scan testability.
The document lists absolute maximum ratings, recommended operating conditions, detailed electrical and timing specifications, pin‑out diagrams for the 128‑pin TQFP package, and ordering information for commercial and industrial families.
| Maximum operating frequency (fmax) | 250 MHz |
|---|---|
| I/O pins | 96 |
| Supply voltage (Vcc) | 3.3 V |
| Output high voltage (VOH) at -4 mA | 2.4 V |
| Package | 128‑Pin TQFP |
| Erase/Reprogram cycles | 10 000 |
| Boundary‑scan testable | 100% IEEE 1149.1 |
The device supports up to 250 MHz maximum operating frequency.
It provides 96 I/O pins.
The PLD operates from a 3.3 V supply.
Yes, it is 100% IEEE 1149.1 boundary‑scan testable.
