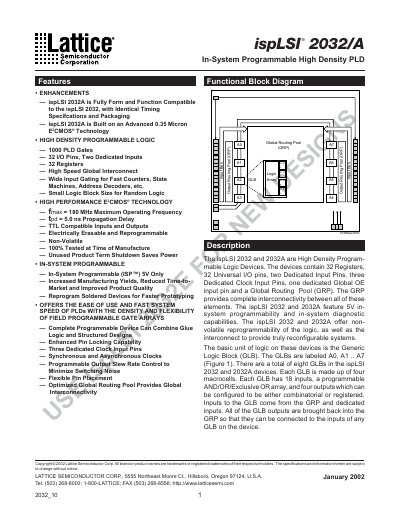

Lattice ispLSI 2032/A In-System Programmable PLD Datasheet

ispLSI 2032A is an enhanced version of ispLSI 2032. It has high density programmable logic, high performance E2CMOS® technology, In-System Programmable (ISP™) technology and other features

Brand: Lattice
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 15
File format: PDF
File size: 146 KB
Published: 06 June, 2012
Updated: 30 September, 2023
Model: ispLSI 2032
MD5 checksum: 54EBA1E669C3FAD030DDE07BF45A106D
PDF: Lattice ispLSI 2032/A In-System Programmable PLD Datasheet PDF

About this manual

The Lattice ispLSI 2032/A is a high-density, in-system programmable (ISP) Programmable Logic Device (PLD) built on advanced 0.35 micron E2CMOS technology. It offers fully form and function compatibility with the ispLSI 2032 model while providing enhanced features such as non-volatile reprogrammability and improved manufacturing yields.

What's inside

Functional Block Diagram
Absolute Maximum Ratings
DC Recommended Operating Condition
Capacitance Specifications
Data Retention Specifications
DC Electrical Characteristics
External Timing Parameters

Specifications

Technology	0.35 Micron E2CMOS Technology
PLD Gates	1000
I/O Pins	32
Registers	32
Maximum Operating Frequency	180 MHz
Propagation Delay	5.0 ns
Data Retention	20 Years
Erase/Reprogram Cycles	10000

Frequently asked questions

What voltage is required for in-system programming?

The device supports In-System Programmable (ISP) using 5V only.

How many years of data retention does the device offer?

The device offers a minimum data retention of 20 years.
