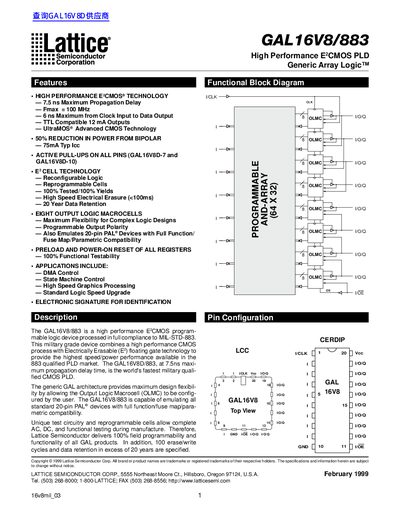

GAL16V8/883 is a high performance E2CMOS programmable logic device processed in full compliance to MIL-STD-883. This military grade device combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest speed/power performance available in the 883 qualified PLD, and can be used for DMA control, state machine control, high speed graphics processing and standard logic speed upgrade applications.
The GAL16V8/883 is a high-performance E2CMOS programmable logic device (PLD) processed in full compliance to MIL-STD-883. It combines a high-performance CMOS process with electrically erasable floating gate technology to provide the highest speed/power performance available in the 883 qualified PLD market. The device features a maximum propagation delay of 7.5 ns and a maximum clock frequency (fmax) of 100 MHz with no feedback.
| Maximum Propagation Delay | 7.5 ns |
|---|---|
| Maximum Clock Frequency (No Feedback) | 100 MHz |
| Clock to Data Output Delay | 6 ns |
| Output Low Current | 12 mA |
| Data Retention | 20 years |
The maximum propagation delay is 7.5 ns.
Yes, it is processed in full compliance to MIL-STD-883.
The maximum clock frequency with no feedback is 100 MHz.
