This is a product datasheet introducing the characteristics of the Interface Plug-in Relay XT from Schrack Relays.

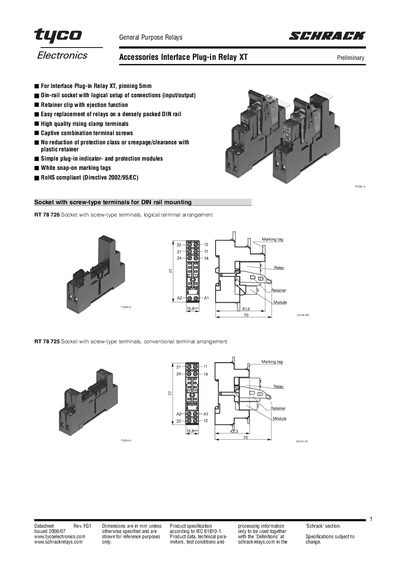

This handbook describes the Tyco Interface Plug-in Relay XT series, highlighting its plug‑in design, DIN‑rail mounting, and easy replacement features. It includes information on the retainer clip, snap‑on marking tags, and RoHS compliance.
Technical data such as rated current, voltage ratings, insulation values, IP protection, temperature range, and mechanical characteristics are listed, along with part numbers for sockets, retaining clips, marking tags, and LED/protection modules that complement the relay.
| Rated current | 2x8A, 16A |
|---|---|
| Rated voltage / max switching voltage | AC 240/400 VAC |
| Dielectric strength (coil‑contact) | 5000 V |
| Open contact circuit voltage | 1000 V |
| Clearance / creepage (coil‑contact) | 10/10 mm |
| Degree of protection (IP rating) | IP20 |
| Ambient temperature range | -20 °C to 470 °C |
| Weight | 36 g |
| Max insertion force | 120 N |
| RoHS compliance | Directive 2002/95/EC |
The relay is rated for 2 × 8 A or 16 A for a 1‑pole relay.
It has an IP20 degree of protection.
Yes, it complies with Directive 2002/95/EC.
It can operate from –20 °C up to 470 °C.
