The Hermaphroditic Blade and Receptacle Connector : Wire-to-Board is a new connector that mates to the new part number series of the surface mount Hermaphroditic Blade and Receptacle board to board connectors.

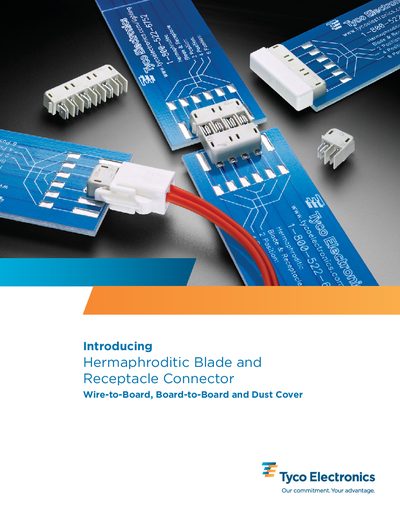

This leaflet introduces Tyco Electronics' Hermaphroditic Blade and Receptacle Connector family, covering both wire‑to‑board and board‑to‑board configurations. It highlights the connector’s key features such as multiple position options, positive latching, RoHS compliance, and compatibility with SMT and reflow processes.
Technical data include electrical ratings (6 A, 125 VAC/125 VDC, 1500 VAC dielectric), operating temperature range (‑40 °C to +105 °C), and mechanical details like mating cycles and housing material. Part numbers for connectors, dust covers, and cable assemblies are listed for 2‑, 4‑, and 6‑position variants.
