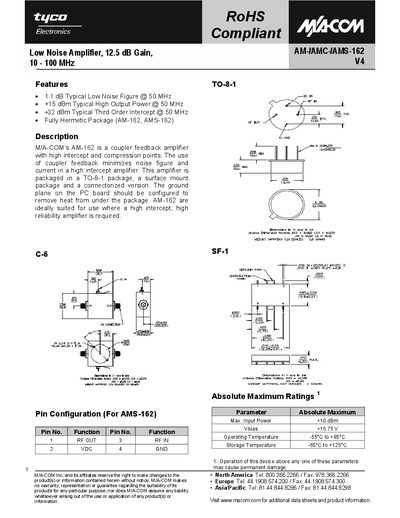

This document is a technical datasheet for the M/A-COM (MACOM) AM-162 Low Noise Amplifier. The device operates in the 10 to 100 MHz frequency range with a typical gain of 12.5 dB and a low noise figure of 1.1 dB at 50 MHz.
The amplifier is available in three package types: TO-8-1, SMA connectorized (AMC-162), and PIN SF-1 (AMS-162). Key features include high third-order intercept points (+32 dBm typical) and a fully hermetic package option. The document provides absolute maximum ratings, electrical specifications, S-parameter data, and typical performance curves.
| Frequency Range | 10 - 100 MHz |
|---|---|
| Typical Gain @ 50 MHz | 12.5 dB |
| Typical Noise Figure @ 50 MHz | 1.1 dB |
| Max Input Power | +10 dBm |
| Operating Temperature | -55°C to +85°C |
| Bias Voltage (Vbias) | +15.0 VDC |
The typical gain at 50 MHz is 12.5 dB.
No, the connectorized version (AMC-162) is not RoHS compliant.
