The T series RFI filters provide superior common-mode and premium differential-mode attenuation, exceeded only by that of Q series filters. This remarkable performance is available for current ratings up to 20 amps in package sizes smaller than comparable EP series filters. These filters are a size and cost-effective choice for very noisy equipment that must meet the emission limits of FCC Parts 15 and 18 or EN55022, A-level. In some cases, these filters can even bring equipment into compliance with EN55022, B-level. This performance is accomplished with circuits that still meet the very low leakage current requirements of VDE portable equipment, and (120 Volt) UL544 non-patient medical equipment.

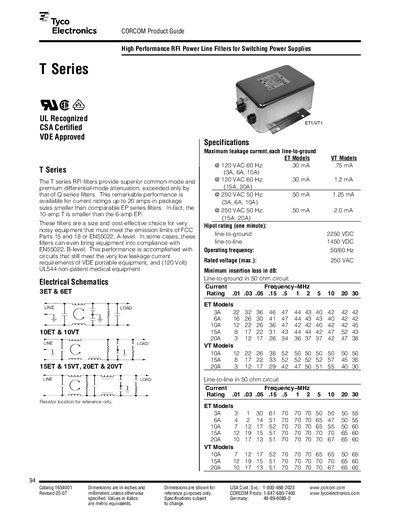

This document provides specifications and case style dimensions for the T Series of High Performance RFI Power Line Filters manufactured by Tyco Electronics. These filters are designed to provide superior common-mode and differential-mode attenuation, exceeding comparable EP series filters while maintaining a smaller package size.
The datasheet details electrical performance metrics including maximum leakage current at 120VAC/60Hz and 250VAC/50Hz, operating frequency ranges, and minimum insertion loss in dB for various models (3A through 20A). It also includes physical dimensions for different case styles (T1, T3, T4, T6, T7) and terminal specifications.
| Rated voltage (max.) | 250 VAC |
|---|---|
| Operating frequency | 50/60 Hz |
| Terminal size for T7 case style | No. 8-32 |
Yes, the T Series RFI Power Line Filters are UL Recognized.
The maximum leakage current is 30 mA.
The rated voltage is a maximum of 250 VAC.
