This document is about the specification of Gemini series switches, including product dimensions, performance parameters, environmental temperature, etc.

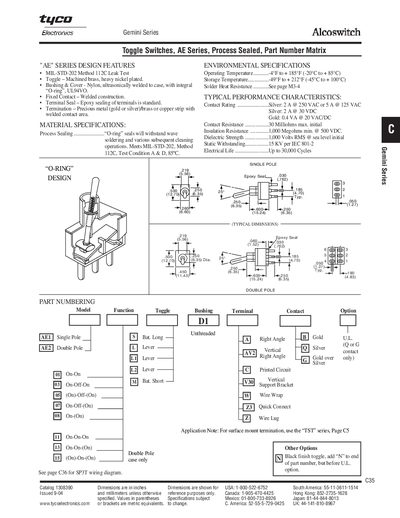

The document provides a comprehensive part‑number matrix for Tyco's AE Series process‑sealed toggle switches. It includes design features, environmental specifications, material data, and typical dimensions for each configuration.
Detailed tables describe the available functions (SPDT, DPDT, etc.), contact options (silver, gold, or mixed), electrical ratings, and UL/CSA compliance. Wiring diagrams and support‑bracket dimensions are also included for installation reference.
| Operating Temperature | 4°F to +185°F (-20°C to +85°C) |
|---|---|
| Contact Rating (Silver) | 2 A @ 250 VAC or 5 A @ 125 VAC |
| Electrical Rating (Gold) | 0.4 VA @ 20 VAC/DC |
| Electrical Rating (Silver) | 5 A @ 125 VAC, 2 A @ 250 VAC, 2 A @ 30 VDC |
| Contact Resistance | 30 mΩ max |
| Insulation Resistance | 1000 MΩ min @ 500 VDC |
| Dielectric Strength | 1000 V RMS @ sea level |
| Static Withstanding | 5 kV per IEC 801‑2 |
The switches operate from 4 °F up to +185 °F (‑20 °C to +85 °C).
Silver contacts are rated for 2 A at 250 VAC or 5 A at 125 VAC.
Gold contacts are rated at 0.4 VA at 20 VAC/DC.
Contact resistance must not exceed 30 mΩ.
