This document introduces the features and benefits of TE Snap Lock SMA Series, including compatibility, connection speed, performance and applications.

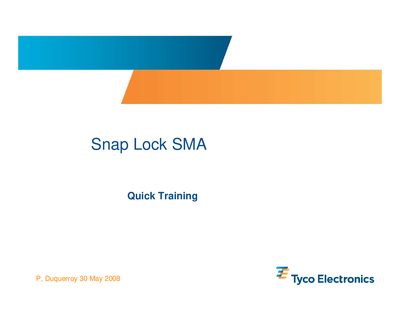

This training module explains the purpose, benefits and typical uses of the Tyco Snap Lock SMA connector. It covers the quick‑engage/release coupling mechanism, backwards compatibility with standard SMA jacks, and the reduced installation time.
Key specifications are listed, including operation up to 12.4 GHz, 50 Ω impedance, VSWR 1.25 @ 11 GHz, durability of at least 500 mating cycles, and a temperature range of –65 °C to +165 °C. Material details such as gold‑plated copper alloy contacts are also provided.
| Operating Frequency | up to 12.4 GHz |
|---|---|
| Nominal Impedance | 50 Ω |
| VSWR | 1.25 @ 11 GHz |
| Durability | 500 cycles min |
| Temperature Rating | -65 °C to +165 °C |
| Outer Contact Material | Au plated Copper alloy |
| Center Contact Material | Au plated Brass |
The connector is rated for operation up to 12.4 GHz.
