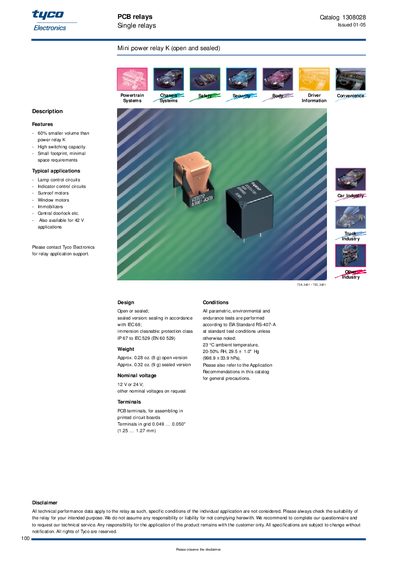

This document describes the features and characteristics of the PCB relays, single relays, mini power relay K (open and sealed). The relay has a 60% smaller volume than the traditional power relay K and has a high switching capacity with minimal space requirements. Typical applications include lamp control circuits, indicator control circuits, sunroof motors, window motors, immobilizers, central door locks, etc. The relay is also available for 42 V applications.
The Mini Power Relay K family from Tyco includes open and sealed PCB relays designed for compact applications such as lamp control, indicator circuits, sunroof and window motors, and immobilizers. The relays offer a 60% smaller volume than previous power relays, high switching capacity, and a small footprint.
The catalog lists detailed mechanical dimensions, contact configurations, electrical ratings, coil power consumption, release and operate times, and environmental test data. Ordering information, part numbers, and coil variants for 12 V and 24 V nominal voltages are also provided.
| Weight (open version) | 0.28 oz (8 g) |
|---|---|
| Weight (sealed version) | 0.32 oz (9 g) |
| Coil power consumption (unsuppressed) | 11 W |
| Release time (typical) | 1.5 ms |
| Maximum ambient temperature range | -40 °C to +85 °C |
The open version weighs approximately 0.28 oz (8 g).
