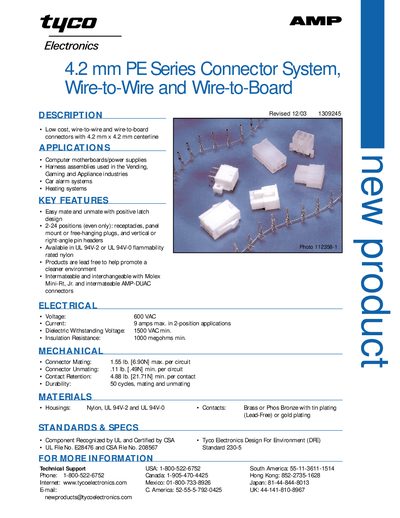

The document introduces a new product, including low-cost wire-to-wire and wire-to-board connectors suitable for computer motherboards/power supplies, harness assemblies used in the vending, gaming and appliance industries, car alarm systems, and heating systems. The product features easy mating and unmating with a positive latch design, offering 2-24 positions of receptacles, panel mount or free-hanging plugs, and vertical or right-angle pin headers. It is available in UL 94V-2 or UL 94V-0 flammability rated nylon, lead-free for environmental friendliness, and intermateable and interchangeable with Molex Mini-Fit, Jr. and AMP-DUAC connectors.
The 4.2 mm PE Series Connector System offers low‑cost wire‑to‑wire and wire‑to‑board connectors for applications such as computer motherboards, power supplies, vending, gaming, appliance, automotive, and heating systems. Key features include easy mate/unmate with a positive latch, 2‑24 position configurations, UL 94V‑2 or UL 94V‑0 nylon housings, lead‑free construction, and interchangeability with Molex Mini‑Fit and AMP‑DUAC.
The series includes receptacle and plug housings, vertical and right‑angle pin headers, and various contact options (brass, phosphor bronze, tin‑plated or gold‑plated). Detailed part numbers, dimensions, and electrical/mechanical specifications are provided for each product variant.
| Voltage rating | 600 VAC |
|---|---|
| Maximum current | 9 A |
| Dielectric Withstanding Voltage | 1500 VAC min |
| Insulation Resistance | 1000 MΩ min |
| Connector mating force | 1.55 lb max |
| Connector unmating force | -11 lb min |
| Contact retention force | 4.88 lb min |
| Durability (cycles) | 50 cycles |
| Housing material | Nylon, UL 94V‑2 or UL 94V‑0 |
| Contact material | Brass or Phos Bronze, tin‑plated (lead‑free) or gold‑plated |
| Lead‑free construction | Yes |
The connector is rated for 600 VAC.
The connectors are rated for 50 mating and unmating cycles.
Housings are available in UL 94V‑2 or UL 94V‑0 flammability‑rated nylon.
Yes, the products are lead‑free to promote a cleaner environment.
