This document provides the performance characteristics of tyco mate-n-lok connector, including voltage, current, withstand voltage, insulation resistance etc.

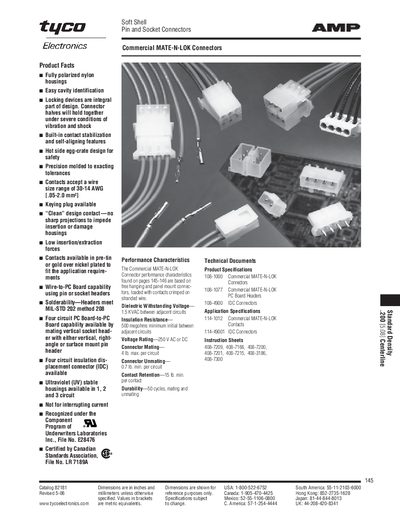

This handbook describes the Commercial MATE‑N‑LOK series of pin and socket connectors, including fully polarized nylon housings, keying plugs, and low insertion forces. It lists the electrical and mechanical characteristics required for reliable panel‑mount and wire‑to‑board applications.
Performance characteristics such as dielectric withstanding voltage, insulation resistance, and contact retention are detailed, along with current‑rating tables, vibration and shock test limits, and recommended panel cutout dimensions for proper installation.
| Dielectric Withstanding Voltage | 1.5 kVAC |
|---|---|
| Insulation Resistance | ≥ 500 MΩ |
| Voltage Rating | 250 V AC or DC |
| Durability | 50 mating/unmating cycles |
The connectors can withstand 1.5 kVAC between adjacent circuits.
They are rated for 250 V AC or DC.
