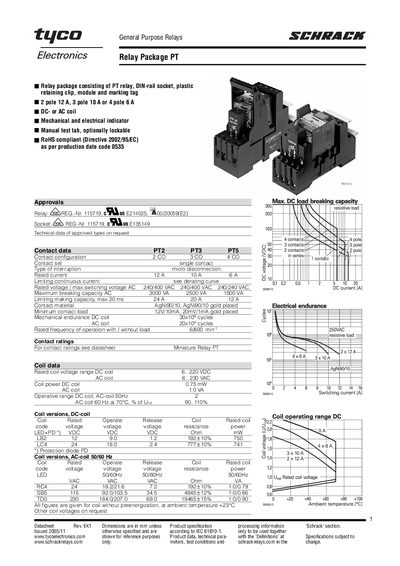

This data sheet is a technical specification for the Schrack Relays PT F0274-A relay. The relay has 2, 3 or 4 poles, with rated currents of 12 A, 10 A and 6 A respectively. It operates on DC or AC power and has mechanical and electrical indicators. It also has a manual test tab.
The Tyco Electronics Relay Package PT is a general‑purpose relay assembly that includes a PT relay, DIN‑rail socket, retaining clip, module and marking tag. It is offered in 2‑pole (12 A), 3‑pole (10 A) and 4‑pole (6 A) versions with either DC or AC coil options.
The datasheet provides detailed electrical ratings such as maximum switching voltage, breaking capacity, coil voltage ranges, power consumption, mechanical endurance, insulation specifications, and environmental limits. It also lists part numbers for each configuration and confirms RoHS compliance (Directive 2002/95/EC).
| Rated current | 12 A (2‑pole), 10 A (3‑pole), 6 A (4‑pole) |
|---|---|
| Rated voltage / max switching voltage | AC 240/400 VAC |
| Maximum breaking capacity | AC 3000 VA |
| Coil voltage range (DC) | 6 … 220 VDC |
| Coil voltage range (AC) | 6 … 230 VAC |
| Coil power (DC) | 0.75 mW |
| Mechanical endurance (DC coil) | 30 × 10⁶ cycles |
| Degree of protection | IP20 |
| Ambient temperature range | -40 °C … +70 °C |
| RoHS compliance | Directive 2002/95/EC |
The PT relay is rated at 12 A for 2‑pole, 10 A for 3‑pole, and 6 A for 4‑pole versions.
Yes, it complies with the RoHS Directive 2002/95/EC.
The relay has a protection rating of IP20.
