OUAZ series Miniature, Sealed PC Board Relay are suitable for telecommunications, appliances, office machines, audio equipment etc.
The OUAZ series from Tyco is a miniature, sealed PC‑board relay designed for telecommunications, appliances, office machines, and audio equipment. It offers gold‑overlay silver‑palladium contacts, a 2.54 mm terminal pitch, and options for standard or sensitive coils.

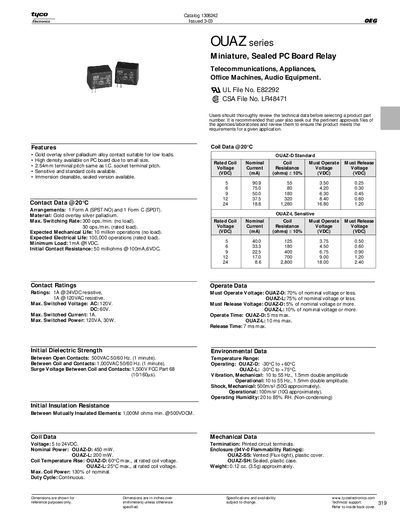

The leaflet lists detailed electrical and mechanical specifications, including contact arrangements, coil voltage ranges, switching ratings, operating temperature limits, and mechanical dimensions, as well as ordering codes for various configurations.
| Contact rating | 1 A @ 24 VDC resistive |
|---|---|
| Maximum switched voltage | 120 V AC / 60 V DC |
| Maximum switched current | 1 A |
| Operating temperature range | -30 °C to +75 °C (QUAZ‑L), -30 °C to +60 °C (OUAZ‑D) |
| Coil voltage range | 5 VDC to 24 VDC |
| Nominal coil power | 450 mW (QUAZ‑D) |
| Weight | 0.12 oz (3.5 g) approx. |
| Contact arrangement | 1 Form A (SPST‑NO) and 1 Form C (SPDT) |
The relay can switch up to 120 V AC and 60 V DC.
The OUAZ‑D version operates from –30 °C to +60 °C, while the QUAZ‑L version operates from –30 °C to +75 °C.
Coil voltages are available from 5 VDC up to 24 VDC.
It offers one Form A (SPST‑NO) and one Form C (SPDT) contact arrangement.
