This product is a IEC appliance plug J by SCHURTER, with a rating of 16 A / 250 VAC, 50 Hz and a protection class of I or II.

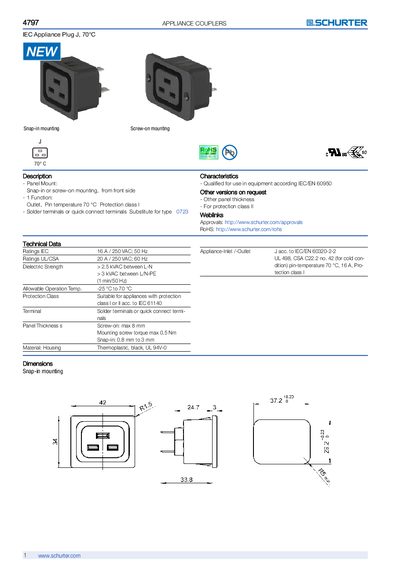

The 4797 IEC Appliance Plug J is a panel‑mount appliance coupler offered by Schurter. It can be installed using snap‑in or screw‑on mounting from the front side, with options for quick‑connect or solder terminals.
The device is rated for 16 A/250 V at 50 Hz (IEC) and 20 A/250 V at 60 Hz (UL/CSA), provides dielectric strength up to 3 kV AC, operates from –25 °C to 70 °C, and complies with protection class I requirements. Approvals and RoHS information are available on Schurter’s website.
| Rated current (IEC) | 16 A / 250 V, 50 Hz |
|---|---|
| Rated current (UL/CSA) | 20 A / 250 V, 60 Hz |
| Dielectric strength L‑N | > 2.5 kV AC (1 min/50 Hz) |
| Dielectric strength L‑N‑PE | > 3 kV AC (1 min/50 Hz) |
| Operating temperature range | -25 °C to 70 °C |
| Protection class | Class I |
| Terminal type | Solder or quick‑connect terminals |
| Mounting torque (screw‑on) | max 0.5 Nm |
| Snap‑in panel thickness | 0.8 mm to 3 mm |
| Screw‑on max panel thickness | 8 mm |
| Housing material | Thermoplastic, black, UL 94V‑0 |
It can be installed with snap‑in or screw‑on mounting from the front side.
The IEC rating is 16 A/250 V at 50 Hz and the UL/CSA rating is 20 A/250 V at 60 Hz.
The pin temperature is rated for up to 70 °C.
It offers greater than 2.5 kV AC for 1 minute at 50 Hz.
