The document describes the features and characteristics of the power entry module GGSSFF11 without line filter, including panel mount, suitable for PCB assembling, options with or without fuseholder, suitable for protection class I equipment.

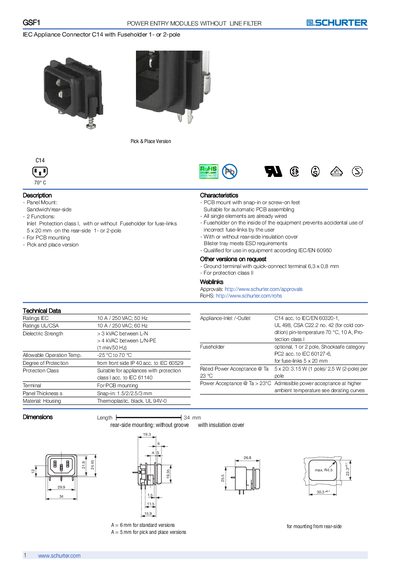

The IEC Appliance Connector C14 with Fuseholder (GSF1) is a power entry module designed for panel or PCB mounting. It is available in 1‑pole or 2‑pole configurations and can be supplied as a standard or pick‑and‑place version.
The document lists electrical ratings, dielectric strength, temperature range, IP protection, material details, dimensions, and various mounting variants. It also includes part numbers for different mounting styles and optional accessories such as insulation covers.
| Ratings IEC | 10 A / 250 VAC, 50 Hz |
|---|---|
| Ratings UL/CSA | 10 A / 250 VAC, 60 Hz |
| Dielectric Strength (L‑N) | 3 kVAC |
| Dielectric Strength (L‑N‑PE) | 4 kVAC |
| Operating Temperature | -25 °C to 70 °C |
| IP Protection | IP40 |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
| Panel Thickness (Snap‑in) | 1.5 / 2 / 2.5 / 3 mm |
| Ground Terminal Size | 48 × 0.8 mm |
| Length | 34 mm |
The connector is rated for 10 A at 250 VAC under IEC standards, 50 Hz.
It can operate from –25 °C up to 70 °C.
The front side protection class is IP40.
The dielectric strength is 3 kVAC between L‑N and 4 kVAC between L‑N‑PE.
