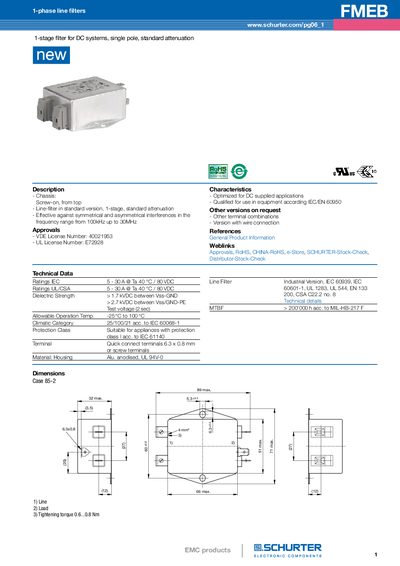

The FMEB 1-phase line filter is a 1-stage DC system filter with standard attenuation. It is effective against symmetrical and asymmetrical interferences in the frequency range from 100kHz up to 30MHz. The product is qualified for use in equipment according to IEC/EN 60950. Other versions are available on request, including other terminal combinations and a version with wire connection.
The FMEB series are 1‑phase line filters designed for DC‑supplied applications. They provide standard attenuation and are effective against symmetrical and asymmetrical interferences from 100 kHz up to 30 MHz. Approvals include VDE and UL licenses, and the filters meet IEC/EN 60950 and IEC 60939 standards.
The document lists ratings, dimensions, terminal options and electrical characteristics such as dielectric strength, MTBF, and operating temperature range. Variants with different current ratings and terminal configurations are provided, along with wiring diagrams and quick‑connect or screw‑terminal options.
| Dielectric Strength (Vss‑GND) | > 1.7 kVDC |
|---|---|
| Dielectric Strength (Vss‑GND‑PE) | > 2.7 kVDC |
| MTBF (test voltage 2 s) | > 200 000 h |
| Operating temperature range | -25 °C to 100 °C |
| Rated current (example) | 5 A |
| Terminal type | Quick‑connect 6.3 × 0.8 mm or screw terminals |
The filter can operate between –25 °C and 100 °C.
Options include quick‑connect terminals (6.3 × 0.8 mm, up to 24 A), screw clamps (4 mm), and flexible wires.
It holds VDE License No. 40021953 and UL License No. £72928.
