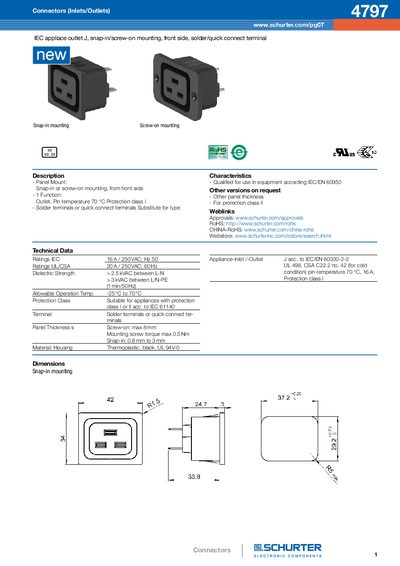

This document is about the datasheet of IEC appliace outlet J for home appliances with ratings IEC 16 A / 250 VAC; Hz 50
The IEC appliance outlet J from SCHURTER is a front‑side panel‑mount connector offering both snap‑in and screw‑on mounting methods. It is designed for appliance use and complies with IEC/EN 60950 and IEC/EN 60320‑2‑2 standards.
The datasheet provides electrical ratings, dielectric strength, temperature limits, mechanical mounting details, and material specifications, along with variant part numbers for quick‑connect or solder terminals and packaging information.
| IEC Rating | 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 20 A / 250 VAC, 60 Hz |
| Dielectric Strength (L‑N) | > 2.5 kVAC (1 min, 50 Hz) |
| Dielectric Strength (L‑N‑PE) | > SKVAC (1 min, 50 Hz) |
| Allowable Operating Temperature | -25 °C to 70 °C |
| Pin Temperature | 70 °C |
| Mounting Screw Torque | max 0.6 Nm |
| Snap‑in Mounting Range | 0.8 mm to 3 mm |
| Screw‑on Mounting Max Depth | max 8 mm |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
The outlet can be mounted from the front side using either snap‑in or screw‑on mounting.
It is rated for 250 VAC at 50 Hz under IEC standards and 20 A / 250 VAC at 60 Hz under UL/CSA standards.
The outlet provides greater than 2.5 kVAC between line and neutral, and greater than SKVAC between line/neutral and protective earth for 1 minute at 50 Hz.
It can operate from –25 °C up to 70 °C.
