6100-3 is a connector for home appliances produced by Schurter. It has a rated current of 10A and a rated voltage of 250VAC, 50Hz. The connector has a protection class of I and a pin temperature of 70°C. It can be used with solder terminals or quick connect terminals.

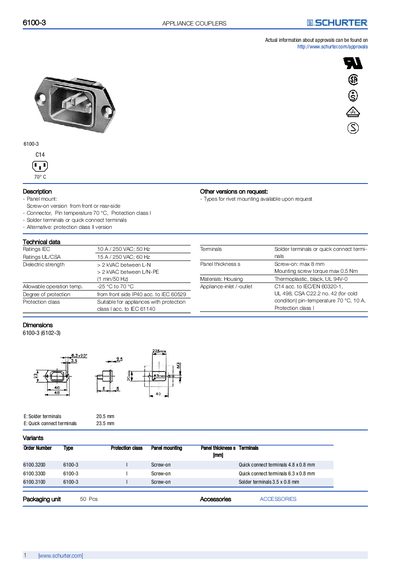

The SCHURTER 6100-3 is an appliance coupler intended for panel‑mount applications. It is offered in a screw‑on version that can be installed from the front or rear side, with rivet‑mounting variants available on request.
Technical data include IEC and UL/CSA current‑voltage ratings, dielectric strength, operating temperature range, IP40 protection, C14 protection class, and material specifications. Dimensions and terminal options are listed for each variant, along with recommended mounting torque.
| IEC rating | 10 A / 250 VAC; 50 Hz |
|---|---|
| UL/CSA rating | 15 A / 250 VAC; 60 Hz |
| Dielectric strength | 2 kVAC (1 min/50 Hz) |
| Operating temperature range | -25 °C to 70 °C |
| IP protection rating | IP40 |
| Protection class | C14 |
| Panel thickness (screw‑on) | max 8 mm |
| Mounting screw torque | max 0.5 Nm |
| Housing material | Thermoplastic, black, UL 94V‑0 |
| Quick‑connect terminal size (variant 6100.3200) | 4.8 × 0.8 mm |
The coupler is rated for 10 A at 250 VAC, 50 Hz according to IEC.
It can operate from –25 °C up to 70 °C.
It meets protection class C14 and has an IP40 rating.
A screw‑on version can be installed from the front or rear side, and rivet‑mounting types are available on request.
