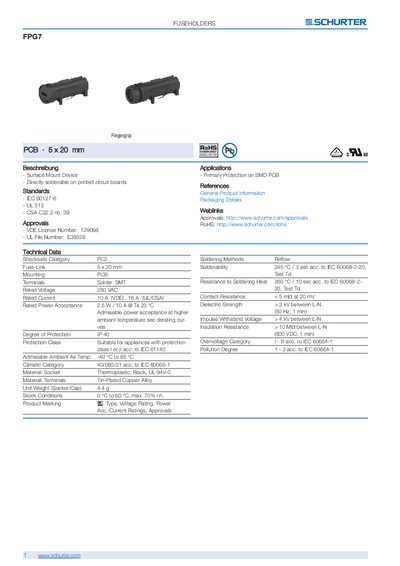

FPG7 is a fuse holder from Schurter. It is a surface mount device that can be directly soldered on printed circuit boards. This product complies with IEC 60127-6, UL 512, and CSA C22.2 standards, and has been certified by VDE License Number 129098 and UL File Number E39328. This product is suitable for primary protection on SMD PCBs.
The FPG7 is a surface‑mount fuseholder designed for direct soldering onto printed circuit boards. It meets IEC 60127‑6, UL 512 and CSA 622.2 standards and is suitable for appliances with protection class I.
Technical data include a rated voltage of 250 V, current ratings of 10 A (VDE) and 16 A (UL/CSA), IP40 degree of protection, and a compact 5 × 20 mm footprint. Approvals such as VDE License No. 129098 and UL File No. 39328 are listed, and the device complies with RoHS directives.
| Rated Voltage | 250 VAG |
|---|---|
| Rated Current | 10A (VDE), 16A (UL/CSA) |
| Rated Power Acceptance | 2.5W/10A @ Ta 23 °C |
| Degree of Protection | IP40 |
| Contact Resistance | <5 mΩ at 20 mV |
| Dielectric Strength | >3 kV between L‑N (60 Hz, 1 min) |
| Impulse Withstand Voltage | >4 kV between L‑N |
| Insulation Resistance | >10 MΩ between L‑N (500 VDC, 1 min) |
| Socket Material | Thermoplastic, Black, UL 94V‑0 |
| Terminal Material | Tin‑Plated Copper Alloy |
| Ambient Temperature Range | -40 °C to 85 °C |
| Climatic Category | 40/085/21 |
| Unit Weight | 44 g |
It complies with IEC 60127‑6, UL 512 and CSA 622.2 no. 39.
The fuseholder is rated for 10 A (VDE) and 16 A (UL/CSA).
It is suitable for appliances with protection class I according to IEC 61140.
