This product is Schurter's FPPGG11 type fast-acting fuse holder. It supports 5x20mm fuses, with a rated voltage of 250VAC, a rated current of 10A (VDE), 16A (UL/CSA), and a rated power of 2.5W / 10A @ Ta 23 °C. The maximum working temperature is 85°C.

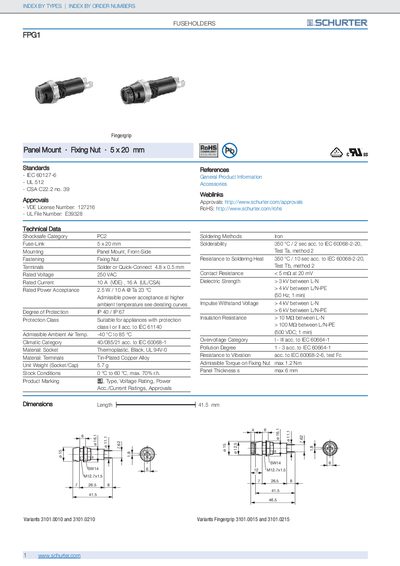

This handbook provides an index of SCHURTER FPG1 fuseholder types and order numbers, together with detailed technical data such as rated voltage, current, power acceptance, material composition, and environmental ratings. It also lists applicable standards, approvals, and reference links to SCHURTER’s website.
The document covers variant options (slotted, finger‑grip, solder or quick‑connect terminals) and their IP protection classes (IP40 or IP67). It includes derating curves, ambient temperature limits, and packaging information for bulk orders.
| Rated Voltage | 250 VAC |
|---|---|
| Rated Current | 0 A (VDE), 16 A (UL/CSA) |
| Rated Power Acceptance | 2.5 W/10 A @ 23 °C |
| Degree of Protection | IP40 / IP67 |
| Climatic Category | 40/085/21 |
| Socket Material | Thermoplastic, Black, UL 94V‑0 |
| Terminal Material | Tin‑Plated Copper Alloy |
| Ambient Temperature Range | -40 °C to 85 °C |
| Dielectric Strength (L‑N) | > 3 kV |
| Impulse Withstand Voltage (L/N‑PE) | > 4 kV |
It complies with IEC 60127‑6, UL 512 and CSA 022.2 no. 39.
The rated current is 16 A under UL/CSA approval.
Variants are offered with IP40 or IP67 protection, depending on the model.
It can operate from –40 °C up to 85 °C.
