This product is a 6600-4 type appliance coupler with a rated current of 10A/250VAC and an allowable operating temperature of -25℃ to 70℃. The product has an IP30 protection rating and is suitable for appliances with protection class I (IEC 61140). The product is made of black thermoplastic material and is UL 94V-0 certified.

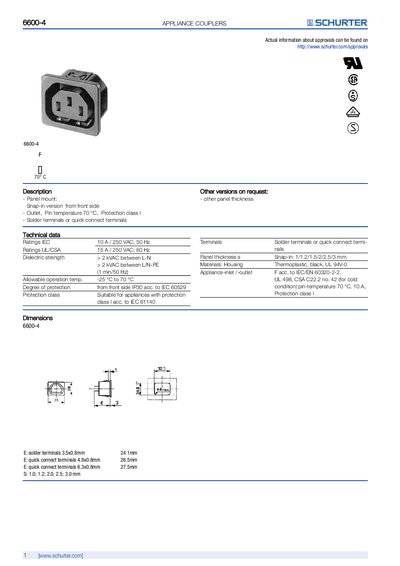

The SCHURTER 6600-4 series provides appliance‑inlet/outlet couplers designed for panel‑mount or snap‑in installation. They feature a thermoplastic housing, 70 °C pin temperature rating and protection class F for use in household appliances.
Multiple variants are offered with different panel thicknesses (1 mm to 3 mm) and terminal types (solder or quick‑connect). Order numbers and dimensions for each variant are listed, allowing easy selection of the appropriate part for a given application.
| Rated current (IEC) | 10 A / 250 V AC, 50 Hz |
|---|---|
| Rated current (UL/CSA) | 15 A / 250 V AC, 60 Hz |
| Pin temperature rating | 70 °C |
| Operating temperature range | -25 °C to 70 °C |
| Degree of protection | P30 (IEC 60529) |
| Housing material | Thermoplastic, black, UL 94V‑0 |
| Panel thickness options | 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm |
| Terminal dimensions (solder) | 3.8 mm × 0.8 mm |
| Terminal dimensions (quick‑connect, 4.8 mm) | 4.8 mm × 0.8 mm |
| Terminal dimensions (quick‑connect, 6.3 mm) | 6.3 mm × 0.8 mm |
The coupler can operate from –25 °C up to 70 °C.
It meets protection class P30 according to IEC 60529.
