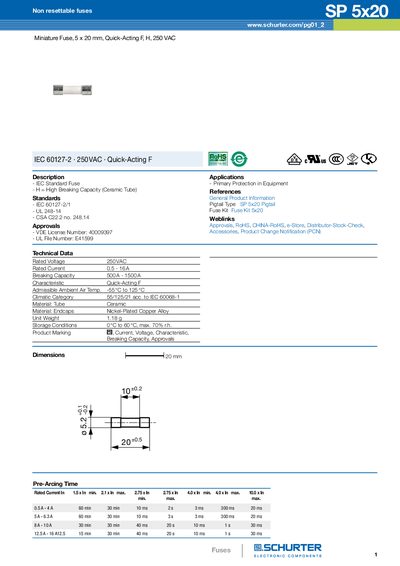

SCHURTER Non resettable fuses SP 5x20 Miniature Fuse 5 x 20 mm Quick-Acting F H 250 VAC

This document describes the features and characteristics of the non-resettable fuse SP 5x20, including standards, certifications, and technical data.

Brand: SCHURTER
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 2
File format: PDF
File size: 338 KB
Published: 01 June, 2012
Updated: 28 September, 2023
MD5 checksum: 2C384D2F4E3D5D169DF9553D0EA96D9E
PDF: SCHURTER Non resettable fuses SP 5x20 Miniature Fuse 5 x 20 mm Quick-Acting F H 250 VAC PDF

About this manual

The SP 5x20 is a non‑resettable, quick‑acting miniature fuse (5 × 20 mm) designed for primary protection in equipment. It meets IEC 60127‑2 standards and carries approvals such as VDE, UL and CSA.

Technical data include a rated voltage of 250 VAC, rated current range 0.5‑16 A, breaking capacity 500‑1500 A, and a ceramic tube with nickel‑plated copper alloy endcaps. The fuse operates from –55 °C to 125 °C and is supplied in bulk packaging.

What's inside

Description
Standards
Approvals
Applications
Technical Data
Variants
Packaging
Time‑Current Curves

Specifications

Rated Voltage	250 VAC
Rated Current	0.5 A – 16 A
Breaking Capacity	500 A – 1500 A
Characteristic	Quick‑Acting F
Climatic Category	§5/125/21
Tube Material	Ceramic
Endcap Material	Nickel‑Plated Copper Alloy
Unit Weight	1.189
Storage Temperature	0 °C to 60 °C, max 70 % RH

Frequently asked questions

What is the rated voltage of the SP 5x20 fuse?

The rated voltage is 250 VAC.

Which standards and approvals apply to this fuse?

It complies with IEC 60127‑2/1, UL 248‑14 and CSA C22.2 no. 248.14, and carries a VDE license.

What is the breaking capacity range?

The breaking capacity ranges from 500 A to 1500 A.
