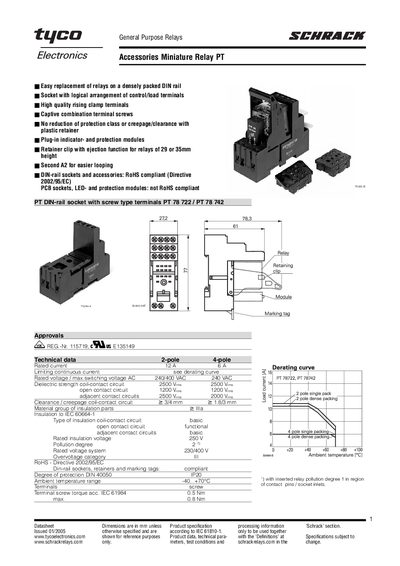

This datasheet provides technical data for the PT series miniature relay.
The Tyco PT series miniature relays are designed for dense DIN‑rail mounting with logical terminal arrangements and high‑quality clamp terminals. The document provides detailed technical data, part numbers, and accessory information such as retaining clips, marking tags, and protection modules.
Key specifications include rated current and voltage, dielectric strength, clearance/creepage distances, environmental limits, and mechanical characteristics like insertion force and torque. RoHS compliance and protection class (IP20) are also listed, along with packaging details.
| Rated current | 12 A (2‑pole) / 6 A (4‑pole) |
|---|---|
| Rated voltage / max. switching voltage | AC 240/400 VAC |
| Dielectric strength (coil‑contact) | 2500 V |
| Open contact voltage | 1200 V |
| Adjacent contact voltage | 2800 V |
| Clearance / creepage | 34 mm (1.8 mm / 3 mm) |
| Degree of protection | IP20 (DIN 40050) |
| Ambient temperature range | -40 °C … +80 °C |
| Terminal screw torque | 0.5 Nm (max 0.8 Nm) |
| Maximum insertion force | 100 N |
| Insertion cycles | 10 |
| Weight (typical) | 44 g – 65 g |
| RoHS compliance | Directive 2002/95/EC |
The PT relays are rated at 12 A for the 2‑pole version and 6 A for the 4‑pole version.
Yes, the DIN‑rail sockets, retainers and marking tags are RoHS compliant.
The maximum insertion force total is 100 N.
